Multi Function PCB Handling Equipment 3 Magazine PCB Loader Easy Operation

Application

The Multi Magazine Loader is used at the starting of the line for loading of PCB’s to the production line. The unit loads the production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.

Features

• Controlled by Omron PLC.
• Easy operation by touch screen.
• Multiple pitches selectable.
• Automatic magazine change-over.
• Tower light display for machine status.
• 3 magazines loading capability.
• SMEMA interface.
• CE certified.

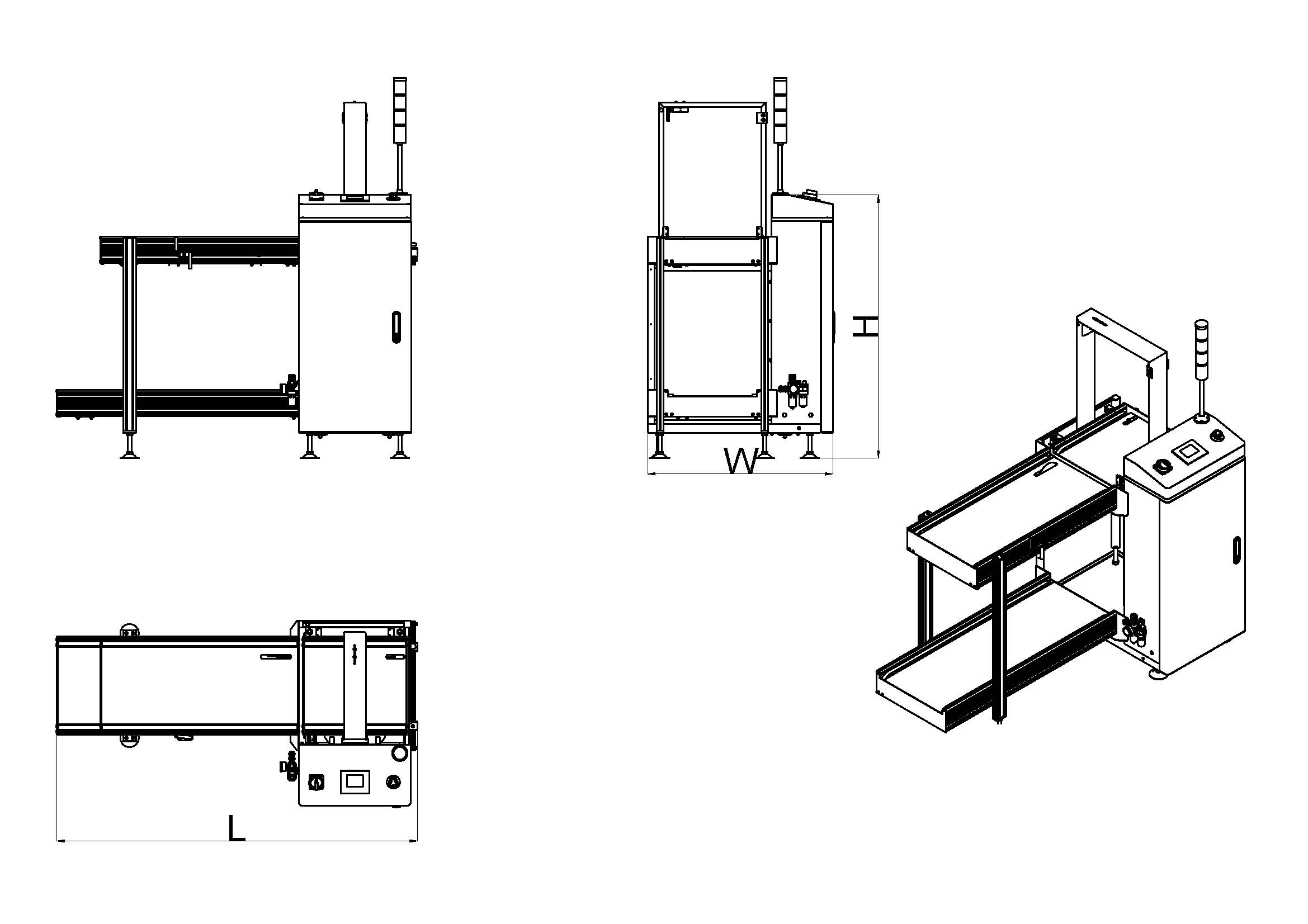

Specifications

* Other options available on request.

Chimall Electronic Technology Co., Limited (Chimall) was established in 1996, Chimall Universal (HK) Co., Ltd. was established in 2006 for overseas market. With years of research and developments, Chimall has become a professional electronic machine manufacturer, designer and marketer.

Chimall has a number of outstanding technicians and responsible excellent staffs. Oriented to provide the best customer satisfaction products and creating the Chimall as a brand, Chimall has a rapid growth with the support of the new and old customers.

Chimall introduced the latest technology from the developed countries and regions like Japan, European and USA, researching and developing the most professional high-quality products. With its high quality, reasonable prices, and excellent after-sales service, Chimall has become a priority partner for the international electronics manufacturers.

Our main products include: PCB Loader & Unloader system, Vacuum Loader, PCB Destacker, PCB Buffer, PCB 90°Turining Machine, PCB Inverter, PCB Linking and Inspection conveyor and all kind of PCB Handling Machines for SMT production line.

Chimall has 139 employees, 8 senior engineers, 15 engineers. We have manufacturing factory, customer service center and marketing center which consists of sales department, market department. And branch offices are located in Shanghai, Suzhou, Beijing, Zhuhai, Xiamen and some cities in China, can provide perfect and fast technical support and after-sales service. Relying on many years' marketing experience, we have established a relatively stable, continuously expanding and perfect sales and after sale service network. Our machines have been sold to all over of China, Europe, North America, the Middle East, Southeast Asia and other countries and regions. We are supplying our machines to worldwide through our overseas agents, our agents will support and service to the overseas customers directly.

Our main customers are such as ZTE, GREE, Haier, Hisense, BYD, OPPO, CHANGHONG, TCL, Midea, Skyworth, EMERSON, PANASONIC, CANON, SAMSUNG etc..
