    Height 1500mm Component Lead Forming Machine

    Ask Lasest Price
    Brand Name : Chimall
    Model Number : C-305A
    Payment Terms : T/T
    Delivery Time : 25 days
    Price : Negotiable
    • Product Details
    • Company Profile

    Height 1500mm Component Lead Forming Machine

    Height 1500mm Component Lead Forming Machine


    High Accurately Auto Component Lead Forming Machine Adjustable Speed C 305A

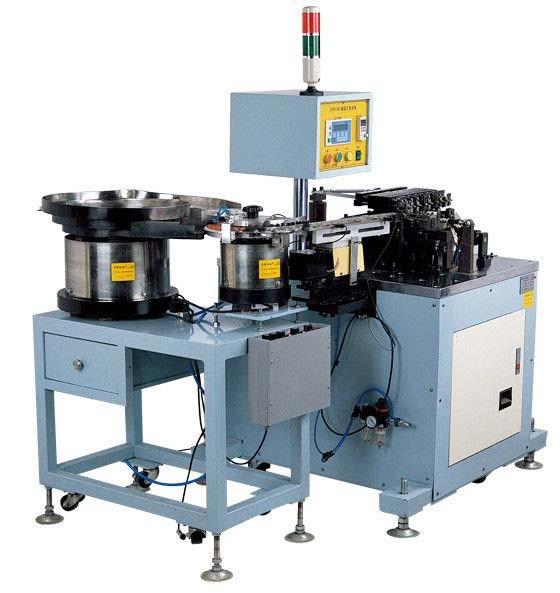

    C-305A Automatic Loose Radial Lead Forming Machine


    Features

    1. Suitable for loose radial components. Feed, hold, form, cut automatically at a time.
    2. Die and module are customized upon drawing with specification.
    3. The speed is adjustable, it feeds with twin feeders. It works accurately and is easy to adjust.

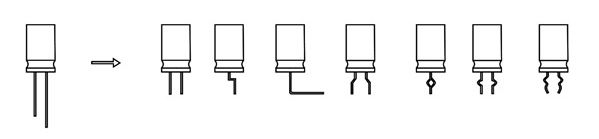

    4. Straight, inward kinks, outward kinks, opposite kink, 90-degree bend and special forming shape can be tailored according to drawing or samples.
    5. Differentiate polar of the components. (Option)

    Specifications


    1. Power:

    AC 110V/220V, 60HZ/50HZ

    2. Dimension:

    L1500 x W1000 x H1500mm

    3. Weight:

    380kg

    4. Efficiency:

    120 - 200 pcs/min
